The Periodic Table

The periodic table is the central organizing chart of chemistry. It arranges every known element by atomic number and groups elements with similar chemical properties into vertical columns. Knowing how to read it gives you immediate predictions about element behavior, reactivity, bonding, ionization energy, and more.

The table’s structure isn’t arbitrary. The groupings reflect electron configurations: main-group elements in the same column often have analogous valence-electron arrangements, and that’s what controls their chemistry. The periodic table is the macroscopic shadow of quantum mechanics applied to atoms, every recurring chemical pattern traces back to recurring electron orbital patterns.

This study note covers the structure, the meaning of groups and periods, how to read element boxes, periodic trends, the four blocks (s, p, d, f), the history of how the table was constructed, the underlying quantum mechanical reason for its structure, and the most important practical implications.

The periodic table is ordered by atomic number. Similar valence-electron arrangements help explain recurring chemical behavior.

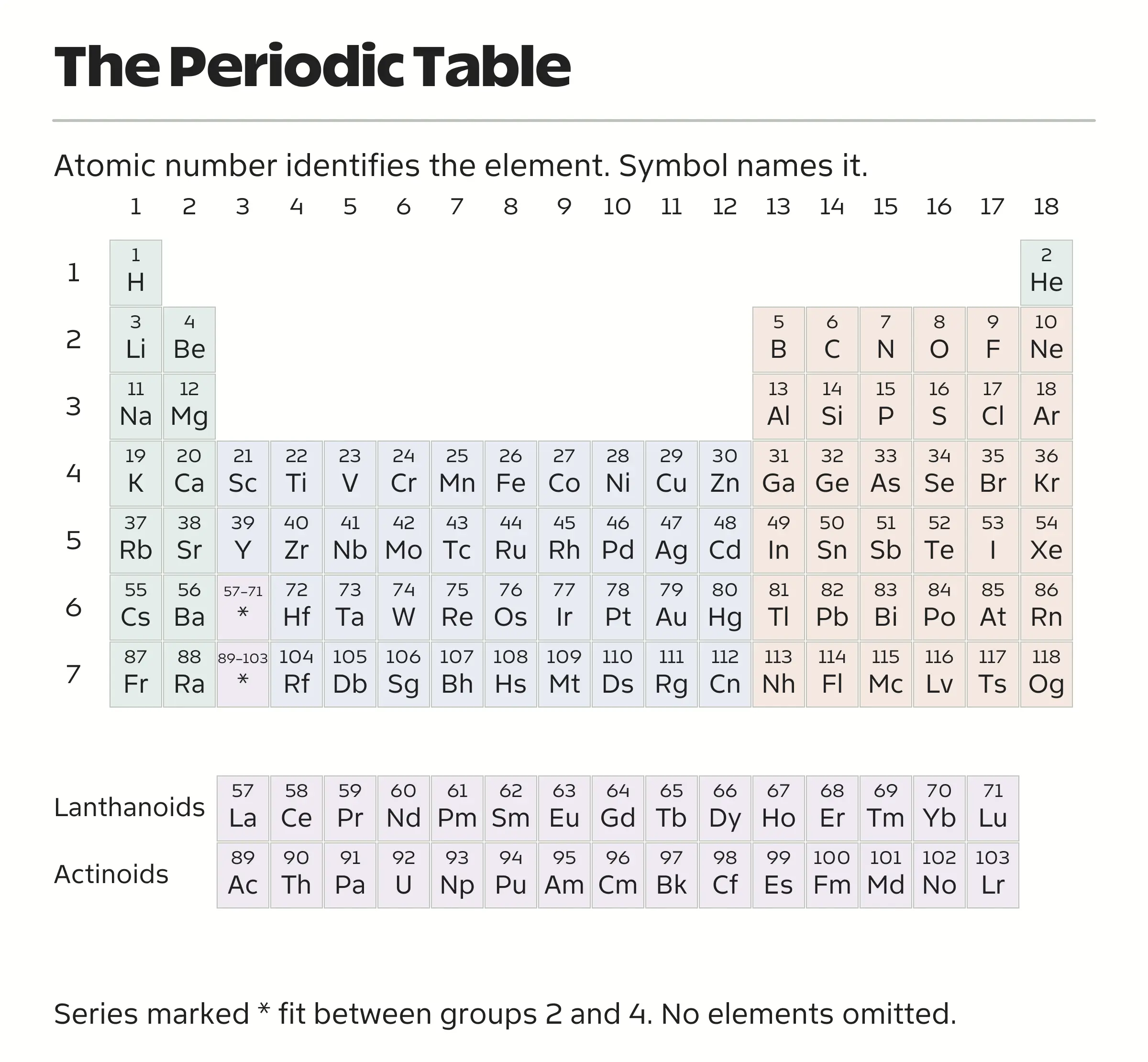

Structure of the Periodic Table

The periodic table has 18 columns (groups) and 7 rows (periods) in its standard form. Each box holds one element, identified by its symbol, atomic number, and atomic mass. Elements are ordered left to right by atomic number, the number of protons in the nucleus.

Going across a period, atomic number increases by one with each element. Going down a group, atomic number jumps by 8, 18, or 32 depending on which orbitals fill in between. The table also has a separate two-row block for the lanthanides and actinides, which would otherwise stretch the main table too wide for printing.

Groups (Columns)

Elements in the same group often share chemical similarities. For main-group elements, analogous valence-electron arrangements explain much of the pattern; transition elements require attention to their d electrons too. The vertical organization is what makes the table “periodic”, properties recur as you move down a column.

Important named groups: Group 1 (alkali metals), Group 2 (alkaline earth metals), Group 17 (halogens), Group 18 (noble gases). Each name reflects a shared chemistry: alkali metals form +1 cations easily; halogens form −1 anions; noble gases barely react at all. Knowing the group usually tells you the element’s characteristic behavior.

Periods (Rows)

Periods are horizontal rows. As you move across a period, atomic number increases by 1, and one electron is added per element. The electrons fill specific orbitals (s, p, d, or f) determined by quantum mechanics.

Period 1 has only 2 elements (H, He) because the 1s orbital holds only 2 electrons. Periods 2 and 3 each have 8 elements (filling 2s, 2p or 3s, 3p). Periods 4 and 5 have 18 elements each (s, p, d orbitals). Periods 6 and 7 have 32 elements (s, p, d, f orbitals), with the f-block elements relegated to the bottom of the table for layout reasons.

Reading an Element Box

Each element box typically shows three things: the chemical symbol (one or two letters), the atomic number (top, smaller number, number of protons), and the atomic mass (bottom, larger decimal, average mass weighted by isotope abundance).

For example, the carbon box shows C, 6, 12.011. Carbon has 6 protons (and in neutral atoms, 6 electrons), with an average atomic mass of about 12.011 atomic mass units. The decimal reflects the natural mixture of carbon-12 and carbon-13 isotopes.

Some periodic tables also include electron configuration, oxidation states, and electronegativity, all useful for predicting chemistry. Modern interactive tables show much more (melting point, density, discovery year, applications) when you click on an element.

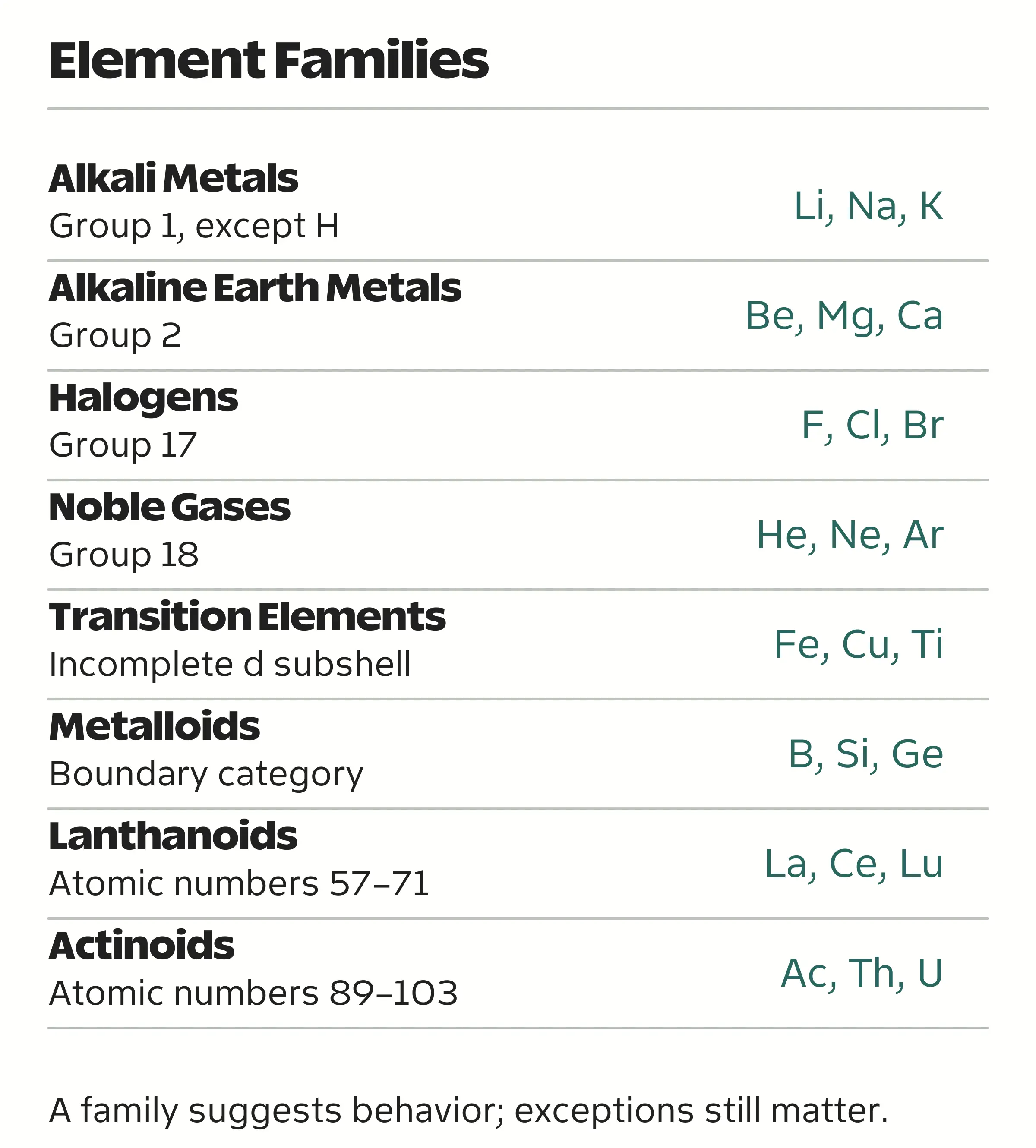

Element Categories

Beyond groups and periods, elements fall into broad categories based on properties:

• Alkali metals (Group 1): soft, react violently with water, form +1 cations.
• Alkaline earth metals (Group 2): less reactive than Group 1, form +2 cations.
• d-block elements occupy Groups 3-12. Under the IUPAC definition, a transition element has an incomplete d subshell in its atom or in a cation it can form. Zinc is a useful reminder that d-block position and this definition are not identical.
• Metalloids: along the diagonal between metals and non-metals (B, Si, Ge, As, Sb, Te). Mixed properties.
• Halogens (Group 17): highly reactive non-metals, form −1 anions.
• Noble gases (Group 18): generally have low reactivity. The familiar lighter members have closed valence shells; xenon forms several compounds, so inertness is not an absolute rule.
• Lanthanides and Actinides: f-block elements at the bottom; rare earths and radioactive heavies.

Periodic Trends

Several properties vary predictably across the table:

• Atomic radius: increases down a group (more shells), decreases across a period (greater nuclear charge pulls electrons inward).
• Ionization energy: energy to remove the outermost electron. Decreases down a group (outer electron is farther from nucleus), increases across a period.
• Electronegativity: tendency to attract bonding electrons. Decreases down a group, increases across a period. Fluorine is the most electronegative element.
• Electron affinity concerns adding an electron to a gaseous atom. A released-energy convention reports a favorable gain as positive; an electron-gain enthalpy convention reports the corresponding energy change as negative. Halogens often gain electrons favorably, but chlorine and fluorine show why a simple arrow is insufficient.
• Metallic character: increases down a group, decreases across a period.

These trends let you predict element behavior without memorizing every detail. They emerge directly from the underlying quantum mechanics of electron orbitals and effective nuclear charge.

The Four Blocks

The blocks reflect the subshell being filled in the usual ground-state configuration pattern. The assignments help explain the layout, while configuration exceptions require checking the actual atom:

• s-block: Groups 1 and 2, plus helium on an electron-configuration basis. Helium has a 1s² configuration but sits in Group 18 because its chemistry resembles the noble gases.
• p-block: Groups 13-18 apart from helium. The characteristic filling pattern adds electrons to a p subshell.
• d-block: the central region, conventionally Groups 3-12. A d subshell participates in the filling pattern; the strict transition-element definition is a separate chemical criterion.
• f-block: the inner-transition region associated with 4f and 5f filling. The lanthanoid and actinoid series are usually shown below the main table to keep the chart compact.

The block structure is what makes the table its characteristic shape. Each block has its own typical chemistry, s-block forms simple ionic compounds, p-block forms covalent and ionic, d-block has variable oxidation states, lanthanoids commonly have a +3 oxidation state, while actinoids can show a wider range of oxidation states.

History of the Periodic Table

Russian chemist Dmitri Mendeleev published his version of the periodic table in 1869, ordering elements by atomic mass and grouping them by chemical similarity. Crucially, he left gaps for elements he predicted must exist, and was vindicated when those elements (gallium, germanium, scandium) were discovered with properties matching his predictions.

Earlier attempts existed: Newlands’ “law of octaves” (1864), Dobereiner’s triads (1817). But Mendeleev’s table was the first that worked at the periodic scale and had predictive power. It’s the canonical periodic table that students learn today.

Henry Moseley (1913) refined the ordering by switching from atomic mass to atomic number, fixing several anomalies (e.g., tellurium and iodine) where atomic-mass ordering disagreed with chemical periodicity. The atomic-number ordering is what every modern table uses.

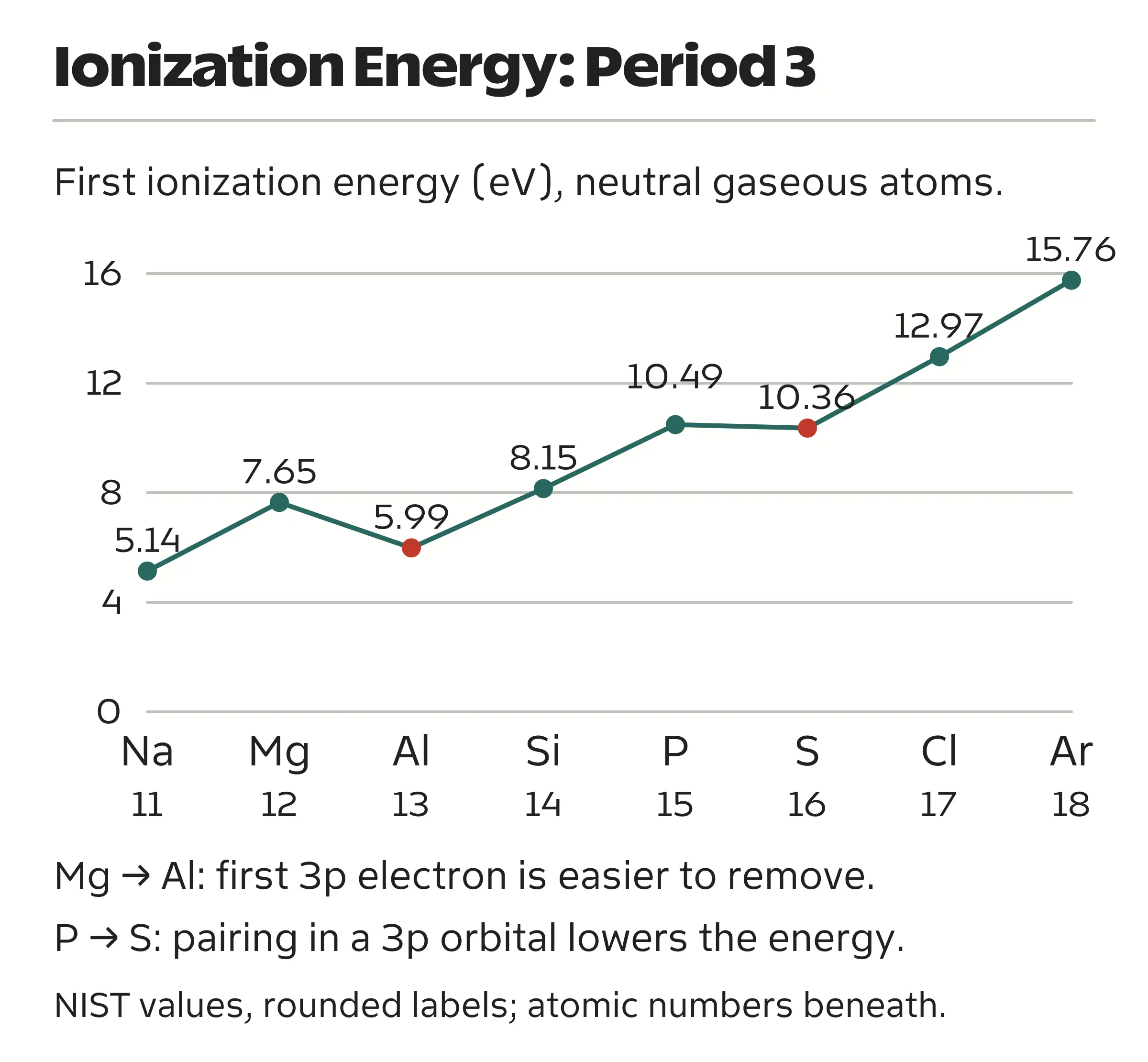

Ionization Energy as a Diagnostic

First ionization energy, the energy needed to remove the outermost electron, is one of the cleanest experimental confirmations of the table’s structure. Plot ionization energy against atomic number and you see a sawtooth pattern: peaks at noble gases (full shells, hard to ionize), troughs at alkali metals (one easily-removed outer electron).

The sawtooth pattern repeats with each new period because the same outer-shell electron pattern recurs. Ionization energy is direct experimental evidence that the periodic table reflects something real about atomic structure, not just a clever organization scheme.

Electron Configuration and Quantum Origin

The periodic structure ultimately comes from quantum mechanics. Electrons in atoms occupy orbitals with quantum numbers n, ℓ, m_ℓ, m_s. The Pauli exclusion principle says no two electrons share all four. As atomic number increases, electrons fill orbitals in order (1s, 2s, 2p, 3s, 3p, 4s, 3d, 4p…), and each orbital can hold at most 2 electrons.

The period lengths 2, 8, 8, 18, 18, 32 and 32 follow the sequence of subshell filling. They are not simply the capacities of successive principal shells: a shell with principal quantum number n has capacity 2n², and subshell energies overlap across shells. The block structure (s, p, d, f) is the orbital-type structure of quantum mechanics. The chemistry recurs because the outer-shell electron arrangements recur as you move through the table.

Without quantum mechanics, the periodic table is empirical. With quantum mechanics, every feature of the table, group structure, block structure, trends, falls out as a consequence of the Schrödinger equation applied to electrons in atoms.

Worked Example: Predicting Element Behavior

Without looking it up, what should you predict about strontium (Sr, atomic number 38)?

Sr is in Group 2 (alkaline earth metals), Period 5. Predictions:

• Forms +2 cations (loses two outer s-electrons).
• Reacts with water to form Sr(OH)₂ + H₂.
• Less reactive than barium (Ba, below it) but more reactive than calcium (Ca, above it).
• Larger atomic radius than Ca, smaller than Ba.
• Lower ionization energy than Ca, higher than Ba.

Every prediction comes from the periodic table’s structure alone, without any specific memorization about strontium. This is why chemists value the table so highly, it’s a compact predictive tool that scales across all elements.

The Modern Table: 118 Elements and Counting

The IUPAC periodic table lists 118 recognized elements, from hydrogen to oganesson. Atomic number, rather than atomic mass, determines their order. Natural occurrence and laboratory synthesis are separate questions from table position: there is no universally accurate rule that every element up to uranium is naturally abundant and every later element is absent from nature.

Many heavy elements are studied through nuclear reactions in reactors or accelerators. The existence, lifetime and identification of a new nucleus must be established experimentally. Predicted regions of greater nuclear stability do not change the list of recognized elements until a discovery is validated.

Common Mistakes with the Periodic Table

1. Reading atomic mass as atomic number. Atomic number is the integer; atomic mass is the decimal. Confusing them gives wrong electron counts.
2. Forgetting that hydrogen is a special case. H is sometimes placed with Group 1 (one outer electron) and sometimes with Group 17 (one electron short of helium). It belongs to neither cleanly.
3. Assuming all transition metals form the same charges. Transition metals have multiple oxidation states; iron can be Fe²⁺ or Fe³⁺, copper Cu⁺ or Cu²⁺. Always check the specific compound.
4. Ignoring effective nuclear charge. Trends in atomic radius and ionization energy depend on shielding by inner electrons, not just total proton count. The effective nuclear charge increases more slowly than total charge.
5. Confusing electron affinity sign conventions. Some textbooks use positive values (energy released); others use negative (energy added). Always check the convention.

Where the Periodic Table Shows Up

• Chemistry classrooms: first thing on every chemistry classroom wall, used in every problem.
• Materials science: selecting elements for alloys, semiconductors, catalysts, and superconductors.
• Pharmaceutical research: understanding drug-protein binding involves predictable element behavior.
• Geology and astronomy: spectral analysis identifies elements in stars and rocks via known emission/absorption lines.
• Nuclear engineering: isotope selection for reactors, weapons, and radiotracers.
• Environmental science: heavy metal toxicity, pollutant tracking, water purification chemistry.

Modern Significance

Despite being 150+ years old, the periodic table remains one of chemistry’s most important tools. Every undergraduate chemistry course teaches it; every working chemist references it. New element discoveries (the most recent confirmed in 2016) extend it but don’t change its fundamental structure.

The periodic table’s enduring power is that it compresses a vast amount of chemical knowledge into a single chart. Anyone who can read it can predict the basic chemistry of any element, a skill no other organizational scheme matches. Mendeleev’s intuition in 1869 has held up better than almost any other scientific framework of comparable age.

How Properties Trend in Practice

If you need a quick chemistry estimate without memorizing specific values, the trends are reliable:

• Need a soft, very reactive metal? Look down Group 1.
• Need a hard, less-reactive metal? Look at Group 2 or transition metals.
• Need an unreactive gas? Look at Group 18 (noble gases).
• Need a strong oxidizing agent? Look at Group 17 (halogens), especially F and Cl.
• Need a good conductor of heat or electricity? Look at metals, and specifically Cu, Ag, Au.
• Need a semiconductor? Look at the metalloid diagonal, Si, Ge first.

These intuitions are why chemists internalize the table early. Once internalized, you stop looking up properties and start predicting them.

Worked Example: Predicting Halogen Reactivity

Within Group 17 (halogens), reactivity decreases going down the group: F > Cl > Br > I. Why? Smaller atoms (higher up the column) attract incoming electrons more strongly because the nucleus is closer to the outer shell, and there’s less inner-shell shielding. Fluorine, with its compact 2p valence shell, grabs electrons hardest.

This trend explains chemical observations directly. Fluorine displaces chlorine, bromine, and iodine from their salts (F₂ + 2NaCl → 2NaF + Cl₂); chlorine displaces bromine and iodine; bromine displaces only iodine. The “displacement series” of the halogens is a textbook demonstration of periodic trends in action.

Modern Periodic Table Layouts

The standard 18-column periodic table is the most common, but several alternative layouts exist. The “long form” includes f-block elements in their proper position (Period 6 stretches across 32 columns); the “ADOMAH” table arranges elements by quantum number; spiral periodic tables emphasize continuity rather than period boundaries.

None replaces the standard table for everyday use, but each highlights different relationships. The standard 18-column form is a compromise: compact enough to print on classroom walls, structured enough to encode the most important chemistry. It’s the table that’s been the working tool for over a century.

The OpenStax chemistry textbooks provide further explanations of the chemical principles used in this note.

Reading a Period and a Group

Sodium has atomic number 11 and a neutral-atom electron arrangement ending in 3s¹. Chlorine has atomic number 17 and an arrangement ending in 3s²3p⁵. Both lie in period 3, while their different valence arrangements place them in different groups.

The tendency toward electron loss or gain is related to these arrangements, but a periodic position alone does not specify every reaction. Ionization energies show broad trends with meaningful exceptions arising from subshell energies and electron pairing. A trend should help explain a value rather than replace the actual electronic structure.

The points to check in this example are:

• Atomic number counts protons.
• A period reflects the principal-shell pattern in the ground-state filling sequence.
• Elements in a group often share important chemical similarities, with exceptions and changing behavior down the group.

Check Your Understanding

Try the questions before reading the answers.

Question 1. Is the modern table ordered by increasing atomic mass?

Answer. No. It is ordered by atomic number.

Question 2. What makes a sodium ion different from neutral sodium?

Answer. Na⁺ has lost 1 electron, while the proton count remains 11.
