Doppler Effect

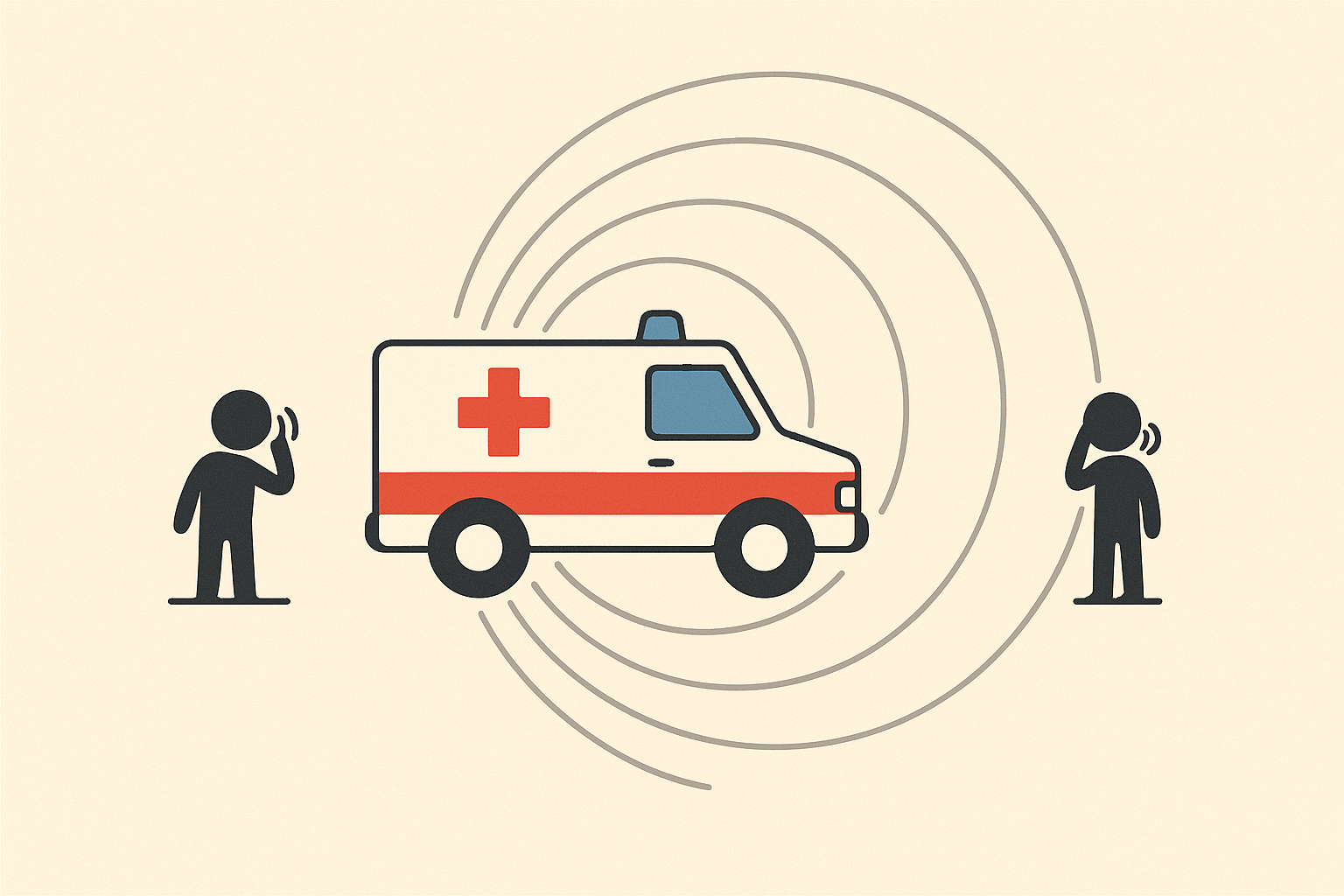

The Doppler effect is the apparent change in the frequency of a wave when there is relative motion between the source and the observer. You have heard it on every ambulance siren that has passed you — the pitch rises as the ambulance approaches and drops as it recedes. The same phenomenon shifts the colors of stars moving toward or away from Earth (redshift and blueshift), produces radar guns that measure car speeds, and lets weather forecasters track storm motion. Christian Doppler proposed the effect for sound waves in 1842; Hippolyte Fizeau extended it to light in 1848. The physics is the same for any kind of wave.

What’s Happening Physically

Sound (or any wave) travels through a medium as a series of compressions and rarefactions. The frequency you perceive is determined by how often these compressions arrive at your ear. If the source is stationary, the wavefronts are evenly spaced concentric spheres expanding outward at the speed of sound.

Now make the source move. As it emits each new wavefront, the source has shifted slightly. Wavefronts emitted in the direction of motion become bunched closer together — the source ‘catches up’ to the wavefronts it just made. Wavefronts emitted behind the source become spread farther apart. The actual sound waves are unchanged at the source, but the spacing as observed from a stationary point depends on which direction you are watching from.

Closer-together wavefronts mean more arrive per second — higher observed frequency. Farther-apart wavefronts mean fewer per second — lower observed frequency. The effect grows with the source’s speed.

The Equation for Sound

For sound waves moving through air (or any other medium), the observed frequency depends on whether the source and/or observer are moving and in which direction:

$$ f_{obs} = f_{source} \cdot \dfrac{v \pm v_{obs}}{v \mp v_{source}} $$

Where:

$ f_{obs} $ = observed frequency
$ f_{source} $ = frequency emitted by source
$ v $ = speed of sound in the medium (~343 m/s in air at room temperature)
$ v_{obs} $ = speed of observer (positive if moving TOWARD source, negative if AWAY)
$ v_{source} $ = speed of source (positive if moving TOWARD observer, negative if AWAY)

The sign convention is the confusing part — easier to remember the qualitative rule: motion that DECREASES the distance between source and observer increases the observed frequency; motion that INCREASES the distance decreases the frequency.

Worked Examples

Example 1. An ambulance siren emits sound at 700 Hz while moving toward a stationary observer at 30 m/s. What does the observer hear?

$ f_{obs} = 700 \times 343 / (343 – 30) = 700 \times 343/313 \approx 767 $ Hz. The pitch rises by 9.5%.

Example 2. After the ambulance passes, it recedes at 30 m/s. Now the observer hears:

$ f_{obs} = 700 \times 343 / (343 + 30) = 700 \times 343/373 \approx 644 $ Hz. The pitch drops by 8%.

The total pitch change as the ambulance passes is about 18% — quite audible. The classic ‘wee-OO-wee-OO’ rising-then-falling tone is the Doppler effect made hearable.

Doppler Effect for Light

Light waves obey a similar but relativistic version of the Doppler effect. For a source moving at velocity $ v $ (with positive $ v $ meaning approaching the observer), the observed wavelength is:

$$ \dfrac{\lambda_{obs}}{\lambda_{source}} = \sqrt{\dfrac{1 – v/c}{1 + v/c}} $$

Where $ c $ is the speed of light. For $ v \ll c $, this reduces to the simpler approximation $ \Delta\lambda / \lambda \approx -v/c $.

Sources approaching the observer have shorter observed wavelengths — the light shifts toward the blue end of the spectrum (blueshift). Sources receding have longer observed wavelengths — the light shifts toward the red (redshift).

Cosmological Redshift

In the 1920s, Edwin Hubble showed that distant galaxies show redshifts proportional to their distance — farther galaxies are redshifted more. The relationship, Hubble’s law, is $ v = H_0 d $, where $ H_0 $ is the Hubble constant. The interpretation: the universe is expanding, and the further away a galaxy is, the faster it is moving away from us. This was the first direct evidence for the Big Bang.

Cosmological redshift is technically not a Doppler effect — it is caused by the expansion of space itself, not the galaxies’ motion through space. But the math looks similar and the relationship between observed wavelength shift and recession velocity is qualitatively the same.

Modern Applications

Police radar guns. Emit microwaves of known frequency at a moving car. The microwaves reflect off the car (which acts as a moving source from the gun’s perspective) and the gun measures the Doppler-shifted return frequency, calculating the car’s speed.
Weather Doppler radar. Emits radio waves at a precipitation field; the Doppler shift of the returning signal reveals the velocity of rain or hail toward or away from the radar. Used to detect mesocyclones and tornadoes.
Medical ultrasound (Doppler echocardiography). Measures blood flow velocity inside the heart and arteries by Doppler-shifting ultrasound off the moving red blood cells. Non-invasive and routinely used to diagnose heart conditions.
Exoplanet detection (radial velocity method). A planet orbiting a star pulls the star slightly. The star’s spectrum is Doppler-shifted periodically as it wobbles. By 2026, over 5,000 confirmed exoplanets have been detected this way.
GPS and satellite communications. Satellites moving at orbital velocities Doppler-shift their signals. GPS receivers must compensate for this shift to compute accurate positions.

The Sonic Boom

When a source moves through a medium faster than the wave speed in that medium, something dramatic happens. Each wavefront stacks up at the location where the source emitted it, and the source itself races past. Behind the source, the wavefronts pile up into a shock cone — the Mach cone. When that cone passes an observer, they hear a single loud crack: the sonic boom.

The same principle in optics is called Cherenkov radiation. Charged particles moving through a transparent medium faster than the speed of light in that medium (which is slower than c) emit a cone of blue light. The eerie blue glow of nuclear reactor coolant pools is Cherenkov radiation.

Frequently Asked Questions

What is the Doppler effect in simple terms?

The Doppler effect is the apparent change in the frequency of a wave when there is relative motion between the source and the observer. The classic example: a passing ambulance siren sounds higher-pitched as it approaches and lower-pitched as it recedes. The actual sound at the siren never changes; what changes is the spacing of wavefronts arriving at the observer’s ear.

Why does the pitch change when a vehicle passes?

Because the source is moving while emitting sound. Wavefronts emitted in the direction of motion are bunched closer together (because the source moves a little between emitting each one), so they arrive at a stationary observer ahead more frequently — higher pitch. Wavefronts emitted behind the source are spread farther apart, so they arrive at observers behind less frequently — lower pitch.

Does the Doppler effect work for light too?

Yes, but the equation is different because light is a relativistic phenomenon. Light from sources approaching the observer is blueshifted (shorter wavelength); light from receding sources is redshifted (longer wavelength). The redshift of distant galaxies, discovered by Hubble in the 1920s, is the foundational evidence for cosmic expansion and the Big Bang.

What is the formula for the Doppler effect?

For sound: f(observed) = f(source) × (v ± v_obs) / (v ∓ v_source), where v is the speed of sound and signs depend on whether each is moving toward or away. For light at v much less than c: Δλ/λ ≈ -v/c (positive if receding). Both are derived from the same idea: relative motion between source and observer changes the apparent spacing of wavefronts.

What is the difference between redshift and blueshift?

Redshift is when light from a moving source has a longer observed wavelength (shifted toward the red end of the spectrum) — happens when the source is moving away. Blueshift is when light has a shorter observed wavelength (shifted toward the blue) — happens when the source is approaching. Most galaxies are redshifted because they are moving away from us due to cosmic expansion.

What practical uses does the Doppler effect have?

Police radar guns measure car speeds. Weather Doppler radar tracks rain and storm motion. Medical Doppler ultrasound measures blood flow inside the heart. The radial velocity method has confirmed over 5,000 exoplanets by detecting stars wobbling due to orbiting planets. GPS receivers compensate for satellite Doppler shifts to compute accurate positions. The effect is everywhere in modern technology.
